New Fox Wedge set
#1
i have been extremely lax posting here. For that I apologize. I have been on a razor creation bender this year. This is my latest and probably my favorite.

Back story.

A few months ago I was looking on EBay for vintage SE razors. A came across a beautiful looking wedge blade razor. The Fox. I bid on it and obviously lost not nearly enough money did I have. Well not to be defeated. I looked up the patent for it and set about making my own.

Now we all know how many Rolls Razors are out there. So I opted to design my razor around the Rolls blade. It has been my experience that a good amount of the Rolls blades are in excellent condition. I had 2 laying around. Then in a matter of 3 days I was able to acquire 5 more blades in separate purchases for a grand total of $42 including shipping Thus being able to make my 7 day set.

 The design is very cool as it is adjustable.
[Image: BBEFB8-D5-417-C-4-B95-9-E1-C-BC34170528-D3.jpg]
It
Lost, If found do not return and do not feed.
The following 4 users Like twhite's post:
  • GAW9576 (10-17-2020), mlb 549 (10-17-2020), riverrun (10-17-2020), Tony'schin (10-17-2020)
Like Reply
#2
That is one amazing looking set, Tom! You truly are an artist, great work as usual!
~ Justin M.
The following 3 users Like mayer57619's post:
  • GAW9576 (10-17-2020), Tony'schin (10-17-2020), twhite (10-16-2020)
Like Reply
#3
That is awesome. The Fox is an incredible looking razor. I would love to see more pictures of your interpretation of it.
I'm guessing this one wont be in a pass around.
The following 1 user Likes GAW9576's post:
  • Tony'schin (10-17-2020)
Like Reply
#4
(10-17-2020, 12:28 PM)GAW9576 Wrote: That is awesome. The Fox is an incredible looking razor. I would love to see more pictures of your interpretation of it.
I'm guessing this one wont be in a pass around.

I will always do a pass around or at minimum let you try my razors. I posted across the street a
Few
Weeks back. Only 2 takers for a pass around. Shipping will be $15 as you would need to use the medium postal box. I will post a bunch of pictures later today.



Tom
Lost, If found do not return and do not feed.
The following 1 user Likes twhite's post:
  • GAW9576 (10-18-2020)
Like Reply
#5

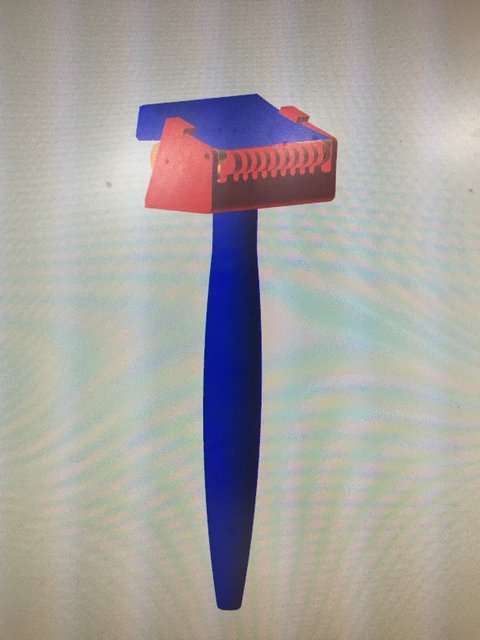

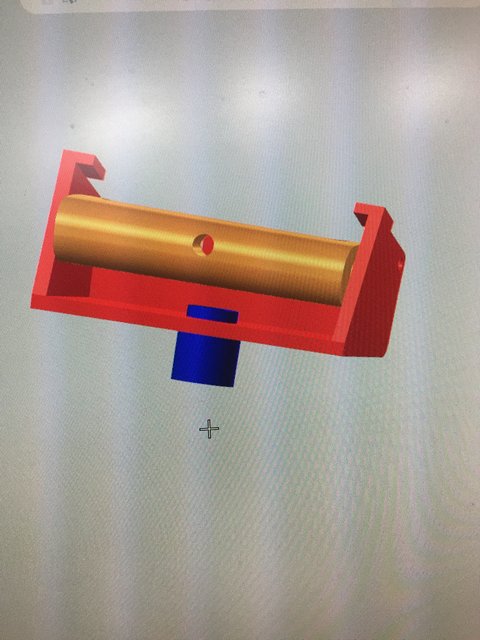

Here is the progression. I first designed my idea
[Image: 6-A5145-B6-A3-DA-4190-B3-D7-2526-CF7-C95-B6.jpg][Image: FC28-CC68-A990-48-B0-B7-BE-DC8-B1-ED90784.jpg]

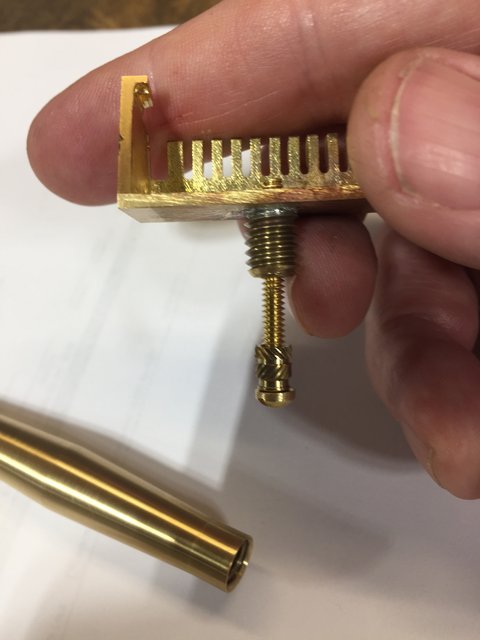

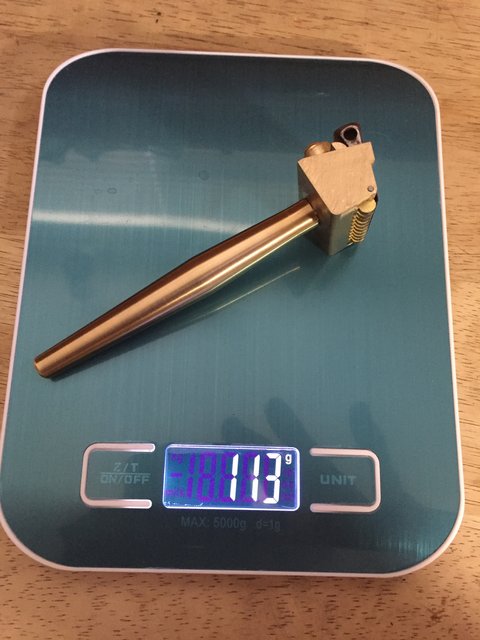

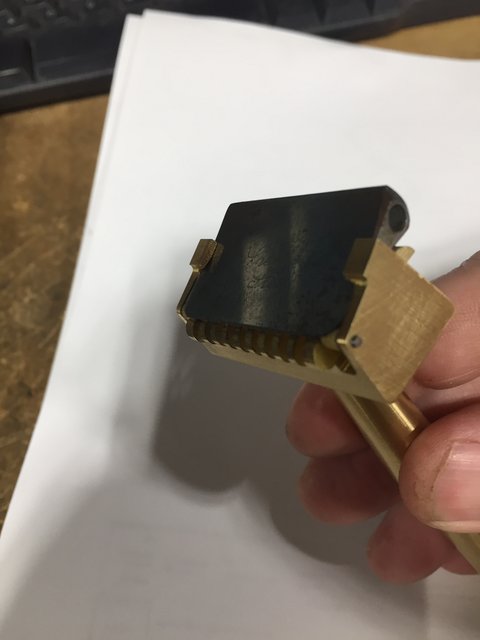

Then start cutting
[Image: 883-DB4-DA-F44-A-4-D0-D-878-C-084903646-EF2.jpg]

[Image: 19-BF208-F-BCDC-4455-83-F7-4655-D018-BA92.jpg]
[Image: 993-AE1-B4-19-BA-4549-B139-D0-D38312382-E.jpg]

Then you decide it will look better with a wood handle.

Next post

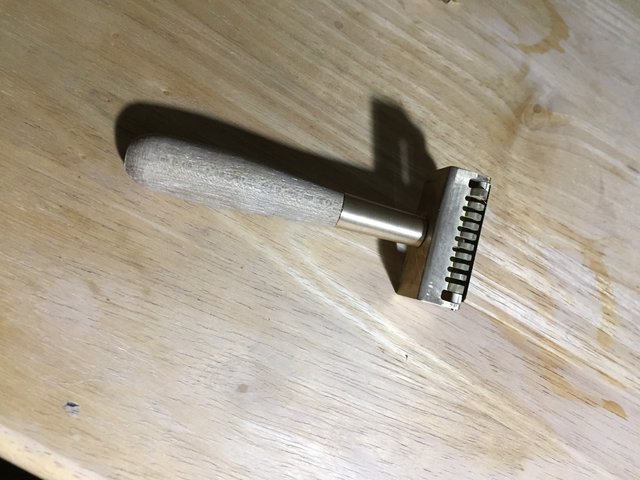

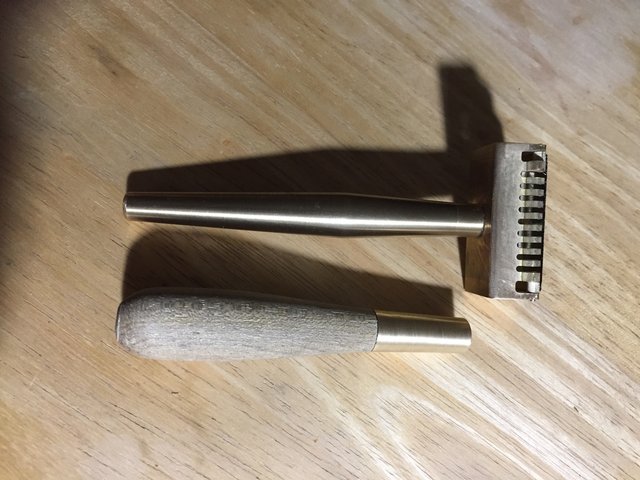

Handle 1
[Image: 7-BA56-BD6-9-CA0-45-A8-A27-A-16-CFC9-B998-DA.jpg][Image: DDD5-FAB6-9416-4999-B8-C5-6679-A97663-BE.jpg]
The handle looks good. Unfortunately it is very head heavy.

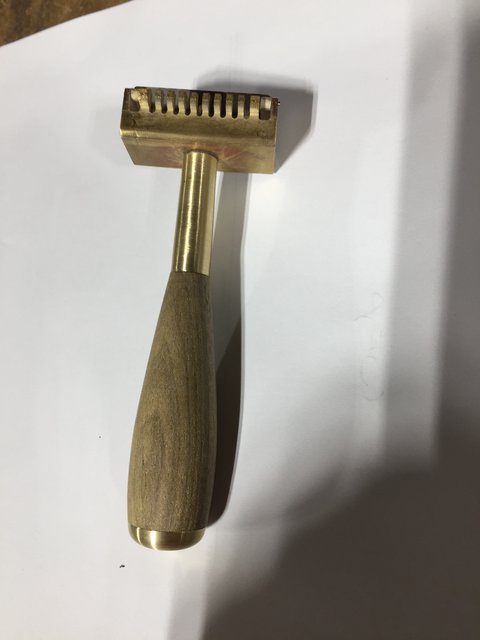

On to V2 I added brass to the back end to counter the head. Much better
[Image: 6-EA44-E78-529-D-4-CE1-80-A8-BA2-E8-A63-F539.jpg]
Now that I have a spare handle. I did not want it to go to waste. So I decided I would try my hand at making a blade attachment to strop with. It turned out pretty good for the first try.


[Image: 6-A74-EDA4-43-FD-48-A4-B180-13-C7-C6-C4-CD54.jpg]
I went this far. So I decided to go all the way and make myself the complete set with matching brush. Jayaruh made me a box several years ago for a project that never materialized. So I was able to have a bitchin box.

Next post

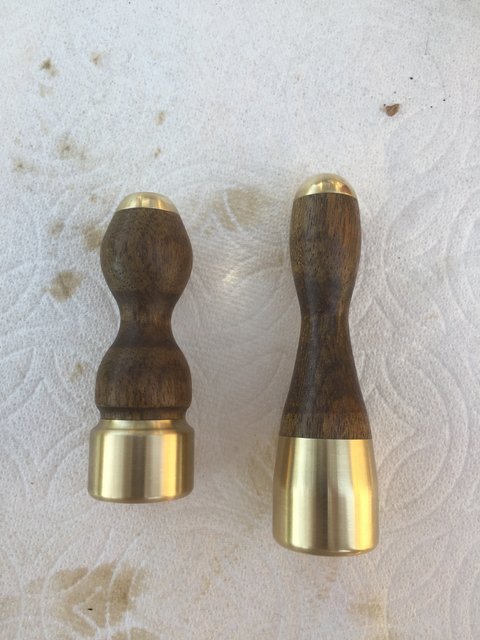

The brush
I did 2 designs to start. Then decided on what one to use for this set.
[Image: A141018-B-4-A67-4-A41-9-E0-E-9872175-FE8-AE.jpg]
As you can see I followed the same theme. Brass and wood. On a little note all the wood came from an old worn out corn broom handle.

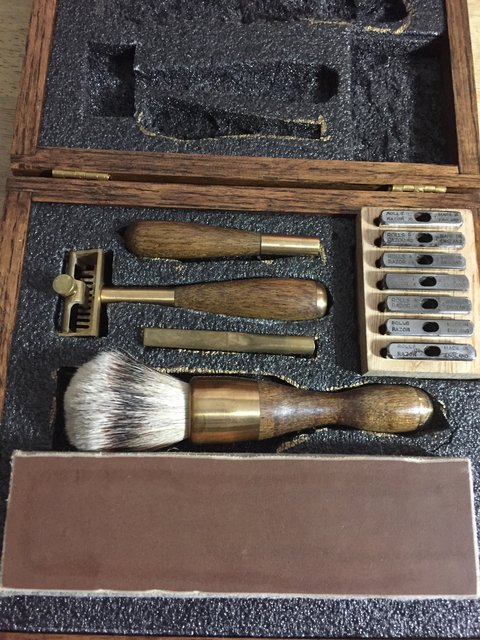

Then after all was said and done I have
The New Fox wedge set
[Image: 4-D2021-A8-B2-DC-41-E0-8-C4-F-7031-C89-C0444.jpg]

The brush
I did 2 designs to start. Then decided on what one to use for this set.
[Image: A141018-B-4-A67-4-A41-9-E0-E-9872175-FE8-AE.jpg]
As you can see I followed the same theme. Brass and wood. On a little note all the wood came from an old worn out corn broom handle.
Then after all was said and done I have
The New Fox wedge set
[Image: 4-D2021-A8-B2-DC-41-E0-8-C4-F-7031-C89-C0444.jpg]
Lost, If found do not return and do not feed.
The following 4 users Like twhite's post:
  • Droo78 (10-19-2020), Jayaruh (10-17-2020), riverrun (10-17-2020), Tony'schin (10-17-2020)
Like Reply
#6
(10-17-2020, 05:16 PM)twhite Wrote: Here is the progression. I first designed my idea

Then start cutting


[Image: 19-BF208-F-BCDC-4455-83-F7-4655-D018-BA92.jpg]
[Image: 993-AE1-B4-19-BA-4549-B139-D0-D38312382-E.jpg]

Then you decide it will look better with a wood handle.

Next post

Handle 1
[Image: 7-BA56-BD6-9-CA0-45-A8-A27-A-16-CFC9-B998-DA.jpg][Image: DDD5-FAB6-9416-4999-B8-C5-6679-A97663-BE.jpg]
The handle looks good. Unfortunately it is very head heavy.
On to V2 I added brass to the back end to counter the head. Much better
[Image: 6-EA44-E78-529-D-4-CE1-80-A8-BA2-E8-A63-F539.jpg]
Now that I have a spare handle. I did not want it to go to waste. So I decided I would try my hand at making a blade attachment to strop with. It turned out pretty good for the first try.


[Image: 6-A74-EDA4-43-FD-48-A4-B180-13-C7-C6-C4-CD54.jpg]
I went this far. So I decided to go all the way and make myself the complete set with matching brush. Jayaruh made me a box several years ago for a project that never materialized. So I was able to have a bitchin box.

Next post

The brush
I did 2 designs to start. Then decided on what one to use for this set.
[Image: A141018-B-4-A67-4-A41-9-E0-E-9872175-FE8-AE.jpg]
As you can see I followed the same theme. Brass and wood. On a little note all the wood came from an old worn out corn broom handle.
Then after all was said and done I have
The New Fox wedge set
[Image: 4-D2021-A8-B2-DC-41-E0-8-C4-F-7031-C89-C0444.jpg]

The brush
I did 2 designs to start. Then decided on what one to use for this set.
[Image: A141018-B-4-A67-4-A41-9-E0-E-9872175-FE8-AE.jpg]
As you can see I followed the same theme. Brass and wood. On a little note all the wood came from an old worn out corn broom handle.
Then after all was said and done I have
The New Fox wedge set
[Image: 4-D2021-A8-B2-DC-41-E0-8-C4-F-7031-C89-C0444.jpg]
Fantastic
The Clan of Catchers - The Jayaruh Brushes - Williams Mug Shave Soap Club

Nil Desperandum Auspice Deo
The following 2 users Like Tony'schin's post:
  • Droo78 (10-19-2020), GAW9576 (10-18-2020)
Like Reply
#7
That's awesome tom. Love seeing how the process works. I didn't see the pass around thread across the street. I'll go look now.
Like Reply
#8
(10-18-2020, 12:57 PM)GAW9576 Wrote: That's awesome tom. Love seeing how the process works. I didn't see the pass around thread across the street. I'll go look now.

It is not an official post yet. It is just on the regular one I made. You are
On the pass around if you like.

I will make an official one later today. Heading out to a
Swap meet then picking up an old Delta band saw. Have been looking for years for one. They are always priced out of my budget. Finally found one I can afford.
Lost, If found do not return and do not feed.
The following 2 users Like twhite's post:
  • GAW9576 (10-20-2020), Tony'schin (10-18-2020)
Like Reply
#9
I see I'm on the list over there. Thanks. I also see there is a Fox on the bay. Man it's tempting, but I try to stick to razors I can buy blades for. I'm just not having luck with honing my unmentionables and can't imagine trying to hone a wedge. I wonder if the original Fox would fit a modern Gem blade..?
Also I had a thought. Maybe people could put a mark with a sharpie marker or put a piece of tape on the blade they use in the pass around so the next person knows which one is fresh and which is used. What are your thoughts?
Like Reply
#10
(10-20-2020, 04:42 AM)GAW9576 Wrote: I see I'm on the list over there. Thanks. I also see there is a Fox on the bay. Man it's tempting, but I try to stick to razors I can buy blades for. I'm just not having luck with honing my unmentionables and can't imagine trying to hone a wedge. I wonder if the original Fox would fit a modern Gem blade..?
Also I had a thought. Maybe people could put a mark with a sharpie marker or put a piece of tape on the blade they use in the pass around so the next person knows which one is fresh and which is used. What are your thoughts?

I think a sharpie would be a great idea. We will do that c
Lost, If found do not return and do not feed.
The following 1 user Likes twhite's post:
  • GAW9576 (10-20-2020)
Like Reply
